LONYE 4387503 Refrigerator Defrost Thermostat for Whirlpool Kenmore Sears WP4387503 AP6009317

Description:

• LONYE Defrost thermostat 4387503 is located inside the freezer compartment either directly mounted to the evaporator or indirectly mounted to the evaporator.

• It has two wires (7.9” ) that connect inline with the heater and a clip on the body of the thermostat that allows it to latch onto the evaporator tubing.

• The thermostat stops the fridge from overheating during the defrost cycle by protecting the evaporator.

• This clip-on thermostat will sense the temperature increase in the evaporator during the defrost process, and will cycle the defrost heater off after the ice or frost is melted.

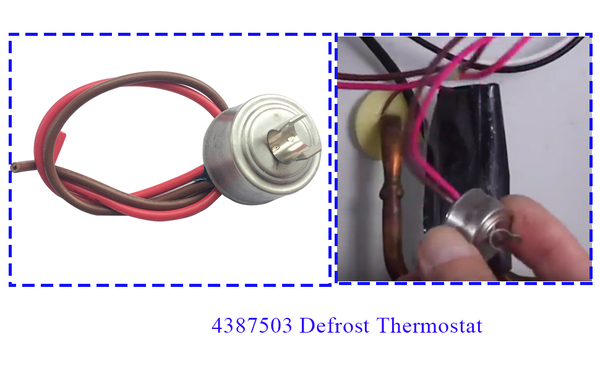

LONYE Defrost Thermostat 4387503

Also known as Bimetal Thermostat

• Terminator with Tube Clip

• Clips onto 5/16" tubing

• Shut off the defrost heaters when the temperature reaches approximately 62°F

• Reset when the temperature reaches approximately 48°F.

• WP4387503 replaces: 2149641, 2149643, 2163894, 2172694, 2182380, 2183072, 2221677, 4343917, 4387503, 61002113, R0950042, WP4387503VP.W

• Works with the following brands: Whirlpool, Kenmore, KitchenAid, Roper, Estate, Maytag, Inglis, Crosley, Hoover, Amana, International, Caloric W

• Works with the following products: Refrigerator, Freezer

            The most common reasons for needing to replace this part are if your unit is leaking, has inconsistent temperatures (too hot or too cold), you are seeing buildup of ice, or your appliance is running too long.

Notice: The thermostat requires the use of wire nuts（not included）

The most common reasons for needing to replace this part are if your unit is leaking, has inconsistent temperatures (too hot or too cold), you are seeing buildup of ice, or your appliance is running too long.

Notice: The thermostat requires the use of wire nuts（not included）
